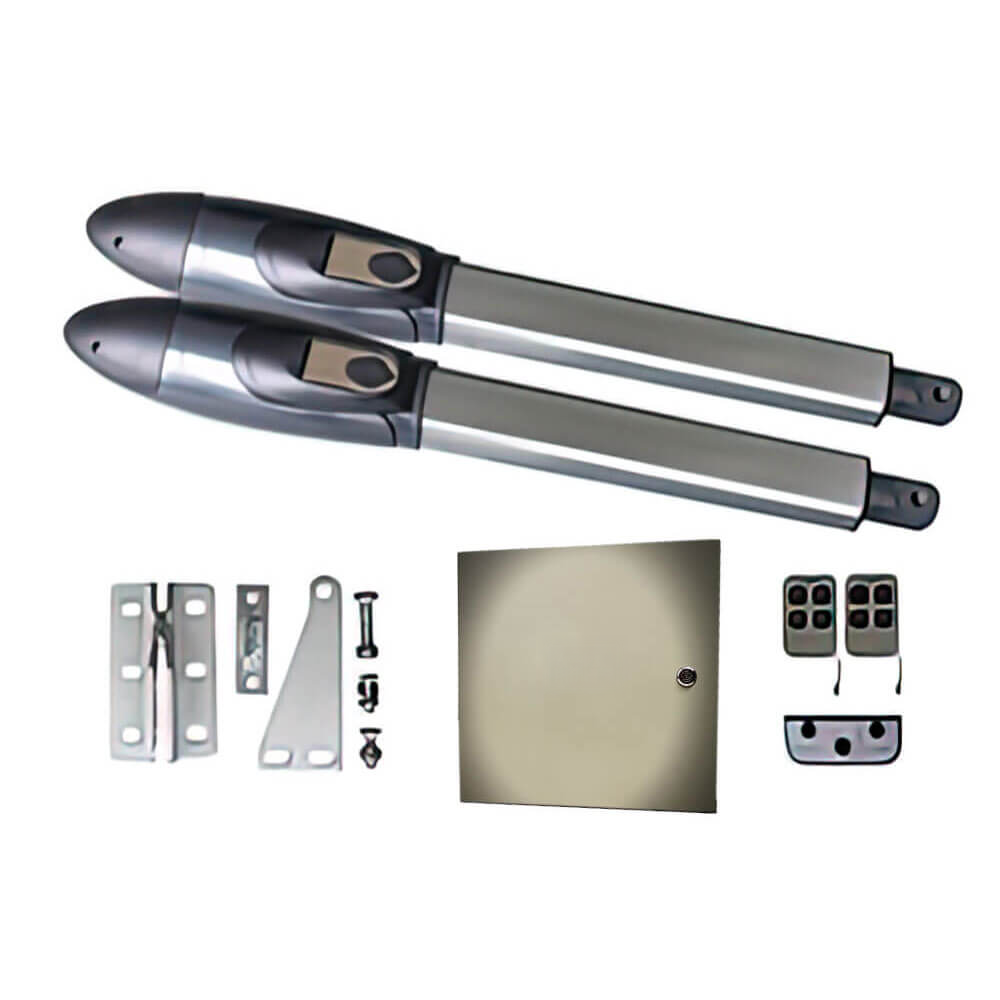

Gatemaster AG900 Bi-parting Swing Electric Gate Openers

Solar Compatible - ask for Solar Kit.

• Motor: 24Vdc motor with mechanical release
• Max absorbed power: 144W
• Peak thrust: 3500N
• Nominal thrust: 3000N
• Duty cycle: 20%
• Stroke length: 12 inches
• Power supply: 110V AC converted to 24Vdc
• Nominal input power: 2A
• Maximum operating current: 5.5A for maximum 10 seconds
• Maximum gate weight: 500 lbs
• Maximum gate length: 14 feet
• Control Panel Voltage: 24V AC, available for 24Vdc backup battery
• Radio Controls: 433 MHz customized rolling code
• Support remote control: Can memorize 120 transmitters at most
• Actuators: 24Vdc Actuator x2
