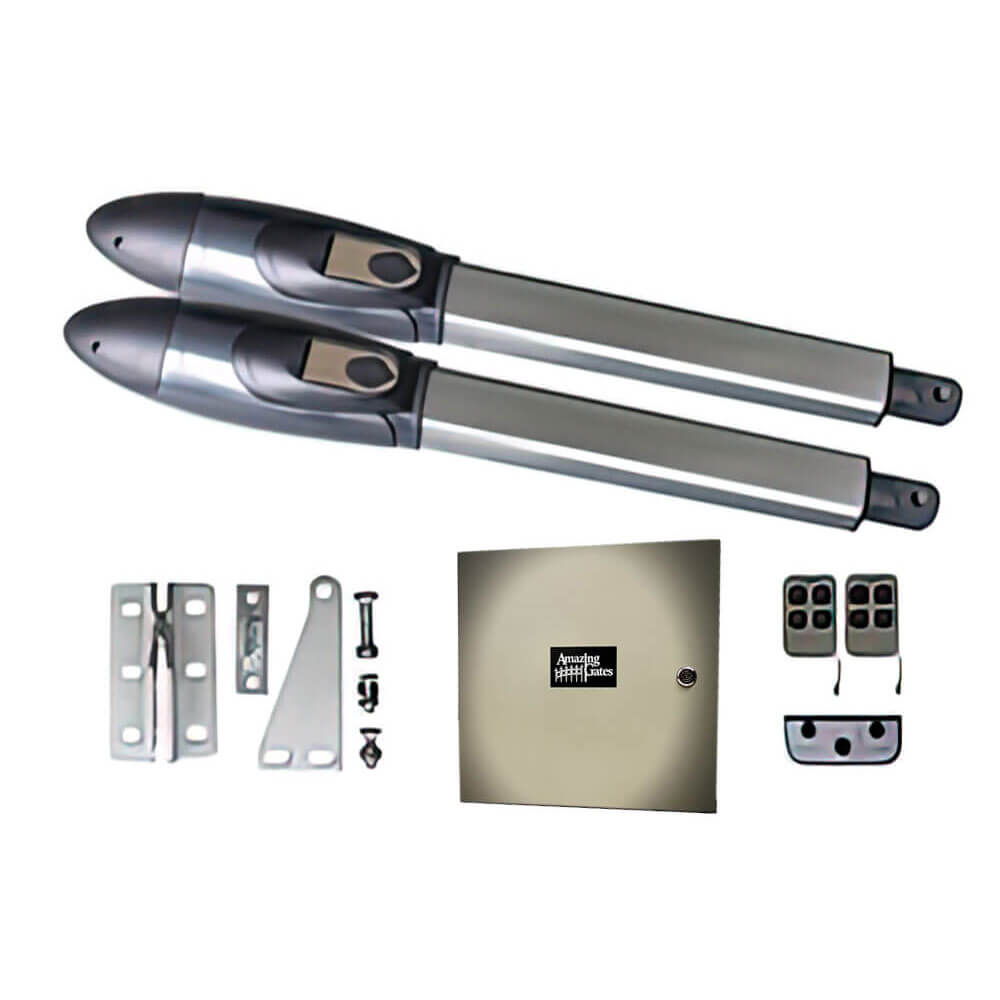

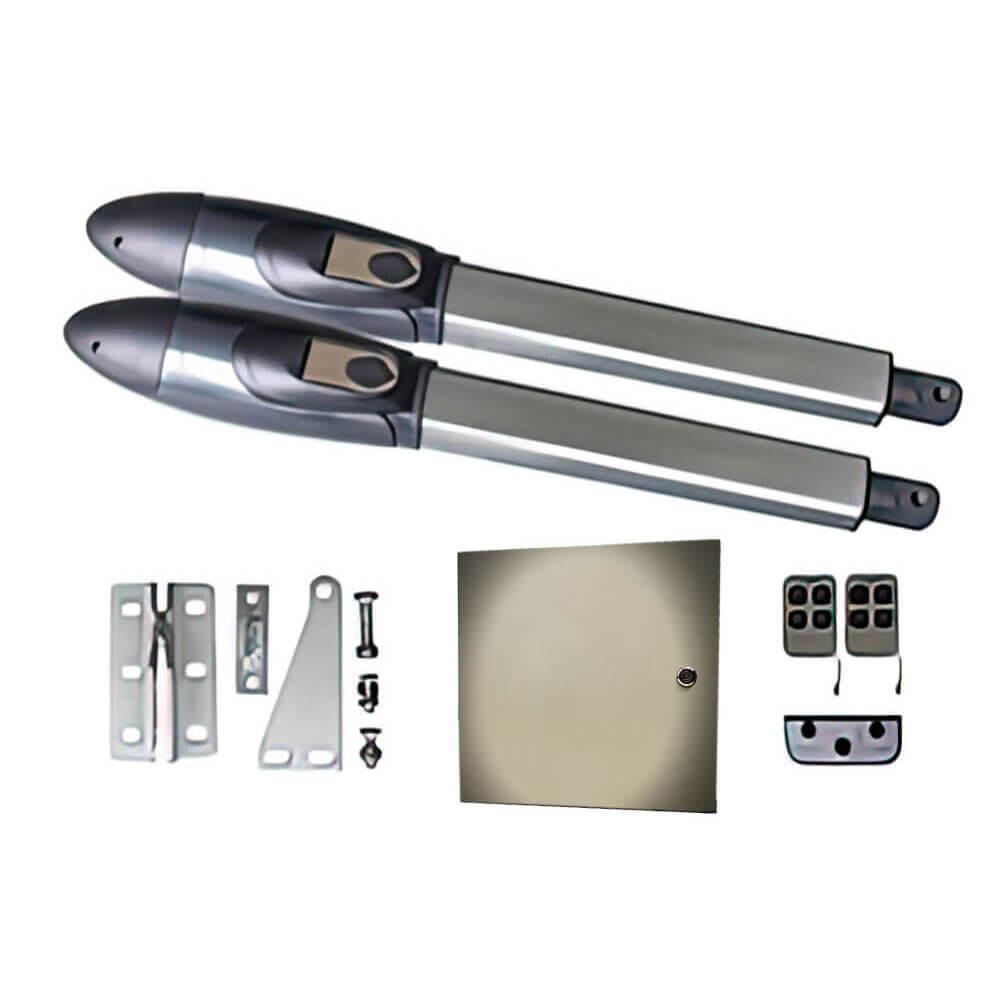

Instructions for PULL TO OPEN (Gate Swings IN Towards the House)

NOTE: The opener will be fully Extended when the gate is Closed, and fully Retracted when the gate is Open. The Closed limit is set by mounting the Gate Bracket on the gate in the right place. The Open limit is set by loosening the Post Bracket bolts and moving the gate manually and then tightening the bolts.

•Unlock and pull up the Manual Release Lever.

•Start with the gate in the desired Closed position, with the arm fully extended, and CLAMP the Gate Bracket to the gate. Don't drill and bolt yet.

•Open the gate until the opener arm is fully retracted.

•Push down the release lever to lock the opener.

•Loosen the Post Bracket bolts and move the gate to the desired Open position and re-tighten the bolts.

•Lift up the release lever and move the gate back to the Closed position where the leaves of the gates are flush and aligned.

•Move the Gate Bracket if necessary.

•Continue adjusting until it opens and closes to where you want it.

•Drill holes in the gate and bolt the Gate Bracket to the gate.

 Instructions for PUSH TO OPEN (Gate Swings OUT Towards the Street)

NOTE: The opener will be fully Extended when the gate is Open, and fully Retracted when the gate is Closed. The Closed limit is set by mounting the Gate Bracket on the gate in the right place. The Open limit is set by loosening the Post Bracket bolts and moving the gate manually and then tightening the bolts.

Unlock and pull up the Manual Release Lever.

Start with the gate in the desired Closed position, with the arms fully retracted, where the gates are aligned, and CLAMP the Gate Bracket to the gate. Don't drill and bolt yet.

Loosen the Post Bracket bolts and open the gate to the desired Open position.

Push down the Release Lever to lock the opener.

Move the gate to the desired Open position and re-tighten the bolts on the Post Bracket.

Lift up the Release Lever and move the gate back to the Closed position where the gates are aligned.

Move the Gate Bracket if necessary.

Continue adjusting until it opens and closes to where you want it.

Drill holes in the gate and bolt the Gate Bracket to the gate.

NOTE: ALL OF THE FOLLOWING STEPS NEED TO BE DONE WITHIN A SET TIME LIMIT OF EACH OTHER SO READ THE INSTRUCTIONS ENTIRELY BEFORE YOU BEGIN.

•Remove the keypad from the gooseneck post and bring it close to the control box. Hold down the top switch to stop the alarm.

•Press 0000* to enter Programming Mode (Expect one long beep)

•Press 55# to send a signal to the opener (Expect one short beep)

•For a SINGLE gate Press 01# (Expect one short beep)

OR

•For a DOUBLE gate Press 02# (Expect one short beep)

•Press and release the Red Learn Button on the Control Board

(Note: Do not hold down the Red Learn Button or it will clear all remotes)

(Expect 4 beeps)

•Wait for the keypad to drop out of Programming Mode

•Test the keypad

SINGLE gate default code: Press 1111#

DOUBLE gate default code: Press 2222#

•Press 0000* to enter Programming Mode (Expect one long beep)

•SINGLE gate: Press 01# (expect one beep)

•DOUBLE gate: Press 02# (expect two beeps)

•Press new code 4 digits then # (Example: Press 2424# (expect one beep))

•Wait for keypad to exit Programming Mode

•Test new code (Example: Press 2424#)

•Brown = power 12vdc+ (connects to 12vdc terminal 7)

•Blue & Yellow = Common (connect to COM terminal 5 or 2)

•Black = N.O. Normally Open (connects to IR terminal 6)

•White is not used

Another easy fix. Here are the steps to take:

•Change Function P9 to set your receiver auto close timer to however many seconds you want the gate to stay open

•Press and hold the FUN button until the display lights up

•Press and release INC+ until the display says P9

•Press and release FUN to see the value for P9 (default is 0 which means it will not auto close)

•Press and release INC+ until it says 30 or more seconds

•Press and release FUN to save the setting

Note: Function P6 sets the auto close timer for the Exit sensor

This could be because Function PC on the control board defaults to 03 which allows different remote transmitter buttons to open one side or both sides.

Suggestion: Change PC to 02 for a double gate or 01 for a single gate.

 •Press and hold the FUN button until the display lights up and says P0

•Press and release INC+ until the display says PC

•Press and release FUN to see the value for PC (default is 03)

•Press and release INC+ until it says 02 for a double gate or 01 for a single gate

•Press and release FUN to save the setting

Theres a few things you can try…

•You can try to turn off the power to the control board for a few minutes. After turning it back on, wait a bit and let the exit wand “recalibrate” itself.

•Try to put your exit wand in a piece of conduit.

•Try to put your exit wand in sand instead of dirt.

Easy, just change the setting for high speed running time.

 •Press and hold the FUN button until the display lights up

•Press and release INC+ until the display says P5

•Press and release FUN to see the value for P5 (default is 5 seconds of high speed)

•Press and release INC+ until it says 11

•Press and release FUN to save the setting

 Tip: Try it at 11 seconds and work either up or down from there
